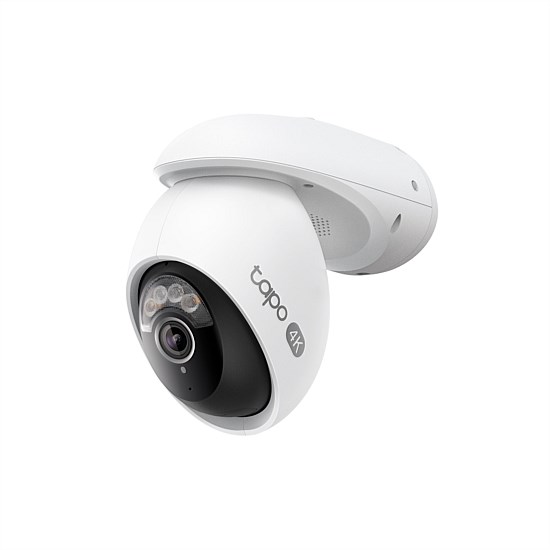

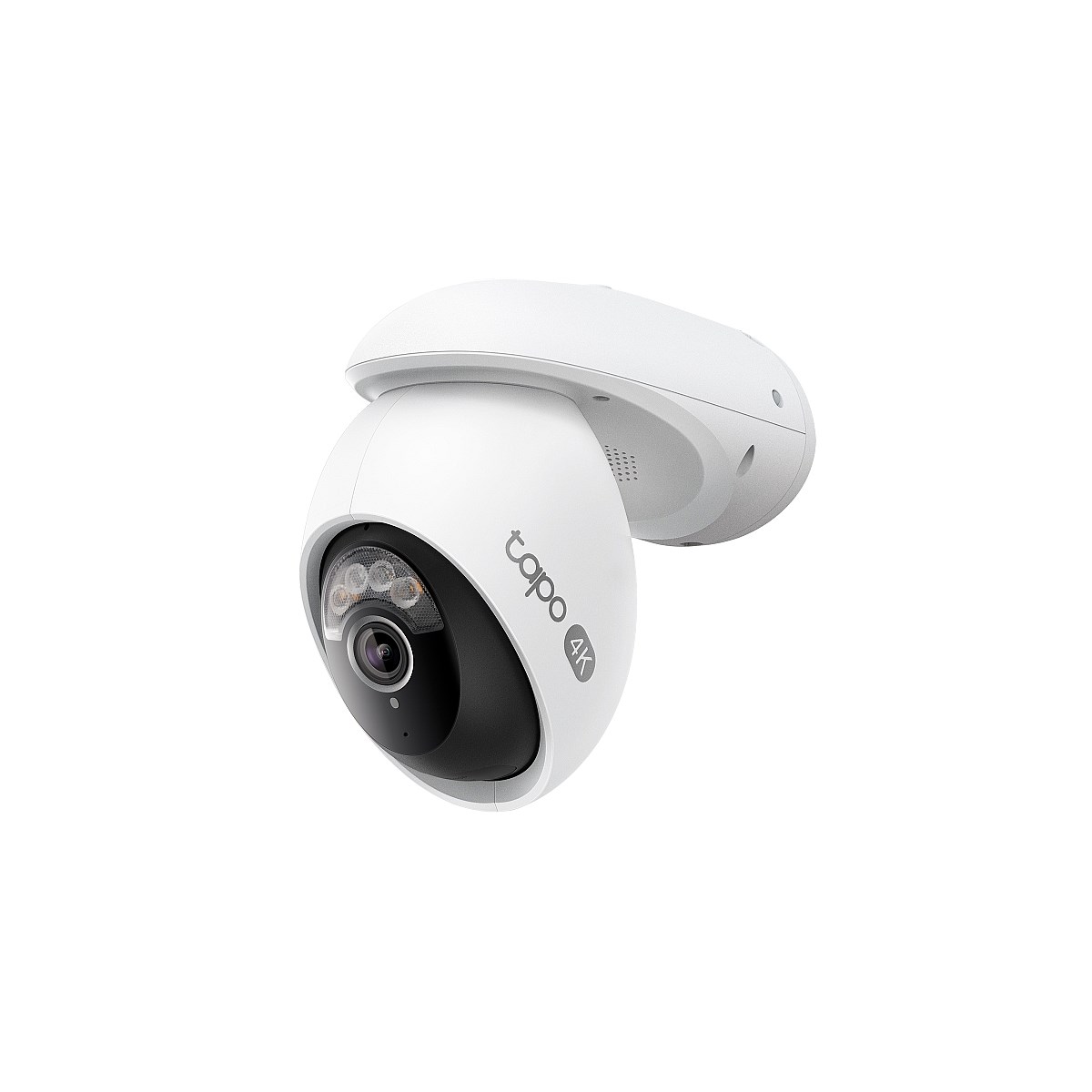

Tapo C560WS Outdoor Pan/Tilt Security Wi-Fi Camera

Outdoor Pan/Tilt Security Wi-Fi Camera

• 4K Ultimate Clarity: The camera features 4K 8MP resolution for superior clarity with upgraded image sensor, processor and lens.
• Local Facial Recognition: The camera boasts free and powerful Al that recognises and tags strangers, family, and friends for easy identification.
• Wi-Fi 6 Dual-Band Connection: Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability.
• Starlight Colour Night Vision: Capture vibrant images in low light. Enhance security with an F1.6 lens, starlight sensor, and spotlights.
• Free Person/Pet/Vehicle Detection: Using Al technology, the camera provides alerts as it identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications.
• Flexible Storage Options: Choose from local microSD storage up to 512GB or the secure Tapo Care cloud service for additional peace of mind.
• IP66 Weatherproof: Offers excellent waterproof and dustproof performance for outdoor scenarios.

4K: Unmatched Clarity, Extended Range
Tapo 4K cameras deliver sharper, more detailed live views, making them perfect for capturing finer details like license plates, human faces and moving objects.

Zoom In, See More
Equipped with 18x digital zoom and an F1.6 aperture, Tapo C560WS captures sharper details and high-quality recordings to enable precise detection with the ability to magnify images for remarkable clarity.

Accurate Facial Recognition, Easy Identification, Local AI Processing
The camera boasts free and powerful Al that recognises and tags strangers, family, and friends for easy identification, reducing overall notifications to the ones that matter. All facial data is processed locally without cloud uploads, ensuring privacy and security.

Upgraded Panoramic Patrol Mode
Set a custom schedule for the camera to automatically scan a full 360 degrees and record or define specific viewpoints that it will visit at designated times.*

Vibrant and Detailed Night Vision
Capture colourful details even in darkness with spotlights and a starlight sensor. Tapo C560WS also offers a stealthy IR black and white mode and a smart mode that automatically switches to colour when a person is detected.

Wi-Fi 6 Dual-Band Connectivity: Faster and More Flexible
Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability, and reduced congestion in heavy bandwidth scenarios.The 5 GHz connection offers faster speed, while 2.4 GHz provides longer distance. Ethernet networking is also supported.

Solid Defense System with Custom Alarms
Ward off intruders with sound and light alarms you can personalise: record custom audio and set your preferred spotlight brightness.

Enhanced Security with User-Friendly Features

• Engineered for Weather Resistance - The IP66-rated Tapo C560WS is always ready to protect, come rain, snow or shine.
• Two-Way Talk - Engage in real-time conversations with the two-way audio feature, designed for exceptional sound clarity.
• Pair with Smart Assistants - Use voice commands with Amazon Alexa and Google Assistant for hands-free control.

Easy Setup and Installation

• Tapo App: Bluetooth Onboarding - Use Bluetooth to easily onboard the camera with the Tapo App. Wi-Fi onboarding is also available.
• Mounting Installation - Use the included mounting bracket and screws to effortlessly install onto walls.

Camera

• Image Sensor: 1/27" Progressive Scan CMOS Starlight Sensor (
• Lens
  • Focal Length: 4 mm plus/minus 5%
  • Aperture: F1.6 plus/minus 5%
  • Field of View: 105 degrees (Diagonal), 88 degrees (Horizontal), 45 degrees (Vertical)
• Motion Range
  • Pan Mechanical Range: 326 degrees (360 degrees Pan Coverage)
  • Tilt Mechanical Range: 53 degrees (98 degrees Tilt Coverage)
• Night Vision
  • 850 nm IR LED
  • Starlight Color Night Vision
  Lighting: 2x Built-in Spotlights
• Interface and Button
  • 1x Ethernet Port
  • 1x RESET Button
  • 1x MicroSD Card Slot (Up to 512GB)

Video and Audio

• Maximum Resolution: 4K 8MP (3840 x 2160 px)
• Frame Rate: 25 fps
• Digital Zoom: 18x
• Video Compression: H.264
• Live View: Yes
• Image Enhancement: 3DNRWDR
• Audio Input and Output: Built-in Microphone and Speaker
• Audio Communication: Two-Way Audio with Noise Cancellation
• Siren Volume: 99 dB (Level measured at 4-inch/10-cm distance)

Storage

• Local Storage: MicroSD Card Slot on Camera (Up to 512 GB)
• Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)

Detection and Notifications

• AI Detection
  • Motion Detection
  • Person Detection
  • Pet Detection
  • Vehicle Detection
• Activity Zones: Yes
• Output Notification
  • System Notification
  • System Notification with Snapshot (Tapo Care Services)

Network

• Network Connectivity: Connect via Wi-Fi or Ethernet
• Wireless Connectivity: IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz /5 GHz
• Ethernet Port: Yes
• RTSP: Yes
• ONVIF: Yes

Security

• Security: SSL/TLS,AES

Power

• Power Source: 12V DC Power Adapter
• Input Voltage: 100-240 V, 50/60 Hz
• Output Voltage: 12 V, 1 A (DC Power)

General

• Smart Integration: Google Assistant, Amazon Alexa
• Weather Resistance: IP66
• System Requirements: Tapo App: iOS 12.0+ and Android 5.0+ operating systems.
• Mounting Options
  • Ceiling-Mounted
  • Wall-Mounted
  • Pole-Mounted (Pole-Mounting loops required but not included)
• Operating Temperature: -30~60 degrees C (-22~140 degrees F)
• Storage Temperature:-40~60 degrees C (-40~140 degrees F)
• Operating Humidity: 10%~90% RH, Non-condensing
• Storage Humidity: 0~90% RH, Non-condensing
• Dimensions ( W x D x H )
  • 147.4 x 74.7 x 165.4mm (Mounting Bracket Included)
  • 147.4 x 74.7 x 157.4mm (Mounting Bracket Excluded)
• Package Content
  • Tapo C560WS Camera x1
  • DC Power Adapter x1
  • Mounting Template Sticker x1
  • Mounting Bracket x1
  • Mounting Anchors and Screws
  • Bracket Screws x2
  • Waterproof Seal x1
  • Waterproof Cable Attachments x1
  • Quick Start Guide
• Certifications: FCC, RoHS, RCM

Scanning and cruising times are limited every day.
