Tapo D235 Video Doorbell Camera

Tapo D235 Tapo Video Doorbell Camera

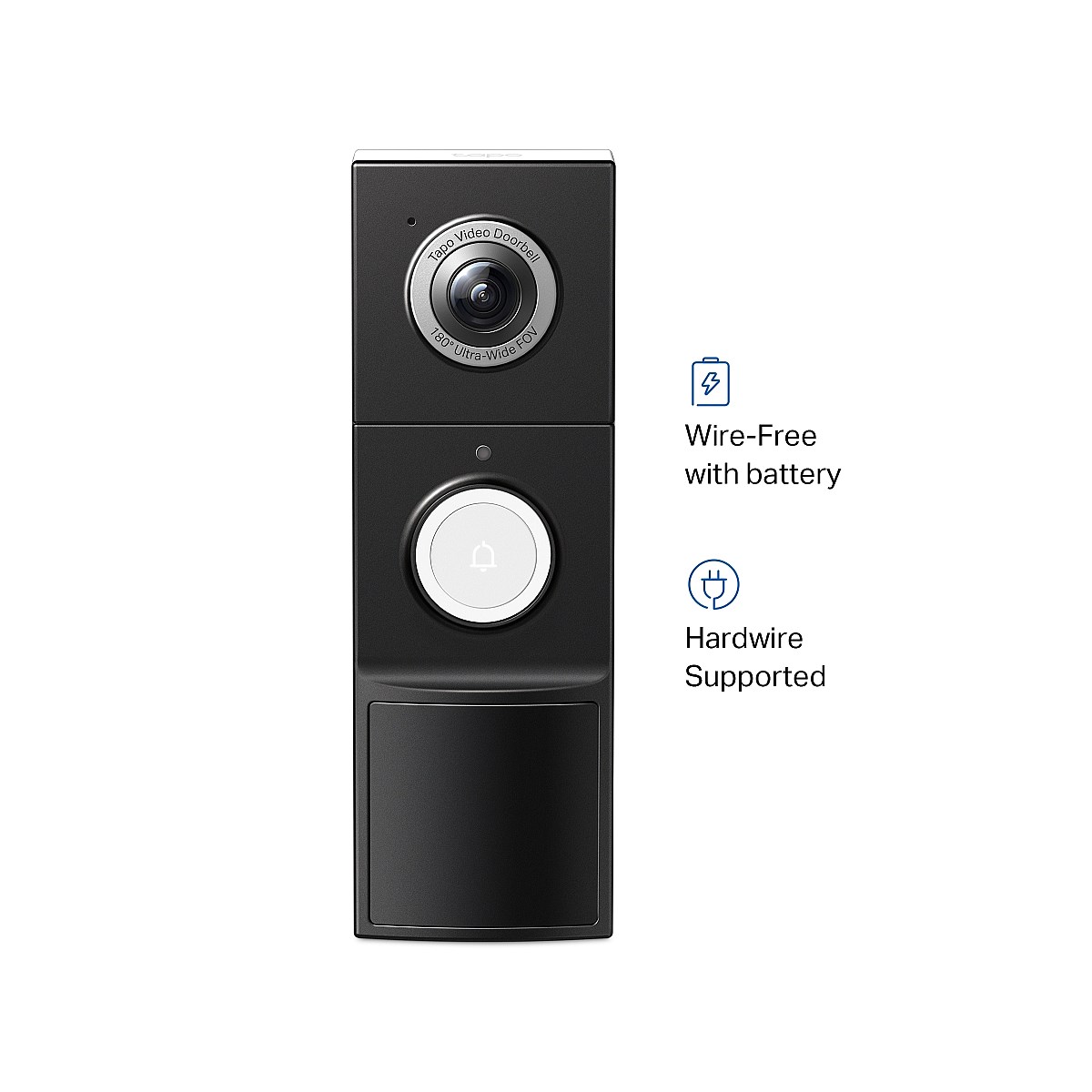

• 210-Day Battery or Wired: 10000mAh battery or 8-24V hardwired, supports pre-roll when hardwired.
• 2K 5MP Clarity: Provides finer details and incredible clarity.
• 180 degree Ultra-Wide View: Captures everything from head-to-toe.
• Full Colour Night Vision with Spotlight: Vivid night visibility and security.
• Free Detection and Notification: ;Alerts for person, vehicle, pet, and package.

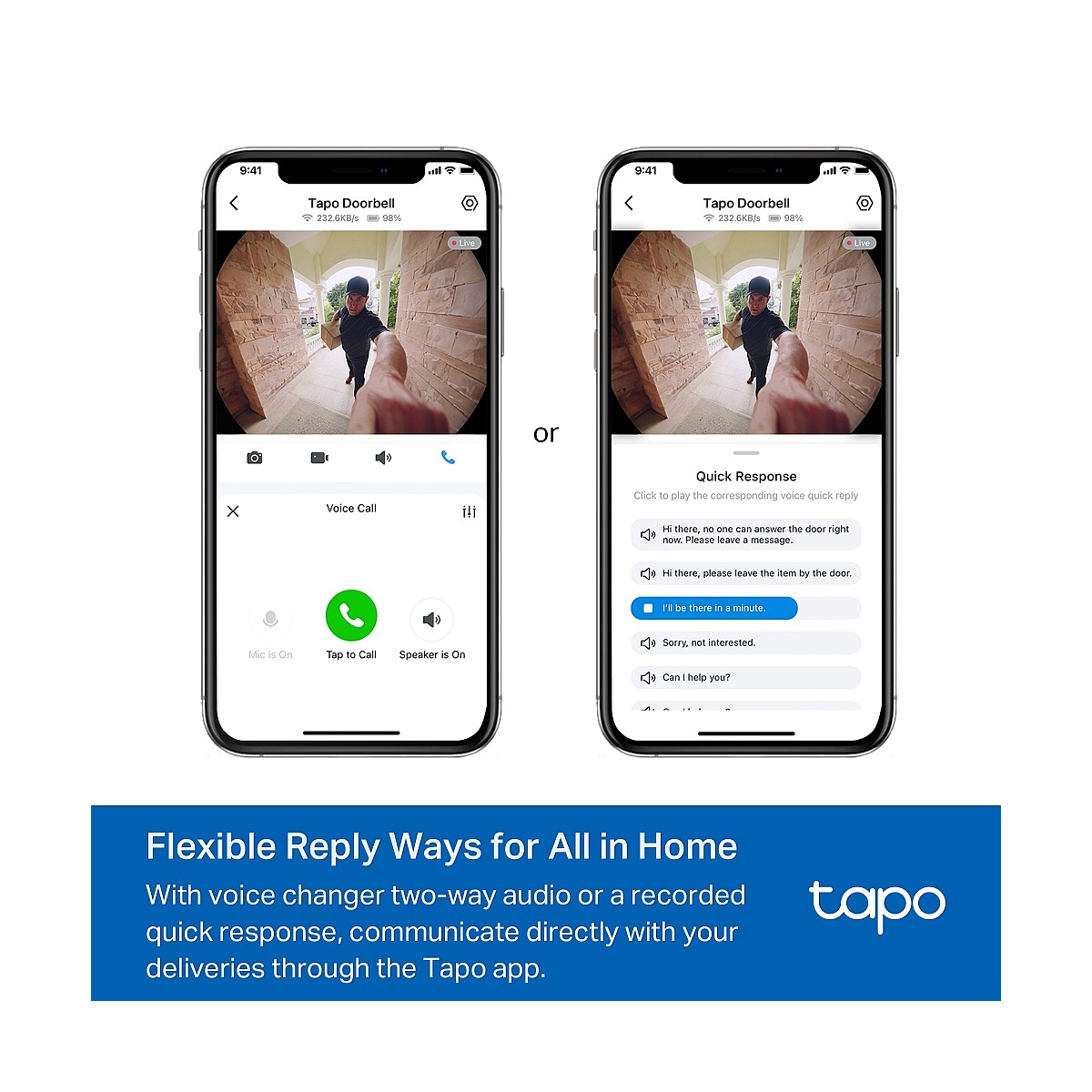

• Two-Way Audio: High-quality talk with premium mic and speakers.
• Quick Response: Rapid reaction to any situation.
• IP66 Weatherproof: Reliable in all weather conditions.
• Local and Cloud Storage: Supports microSD card (up to 512GB) and Tapo Care cloud services.

2K 5MP Head-to-Toe 180 degree DFOV
Details matter, and with 2K 5MP clarity, D235 exceeds traditional Full HD resolution with finer details and incredible clarity. Experience the full picture with our 180 ° ultra-wide field of view, capturing every detail from head to toe in a single sweeping glance.

Flexible Wedges, Flexible Views
Different wedge choices give users possibilities to make the doorbell suits more placement scenarios. Users can also use these wedges to adjust the views.

Local and Cloud Storage
Save recorded videos on the microSD Card* (up to 512 GB, purchased separately) or use Tapo Care cloud storage services (subscribe separately).

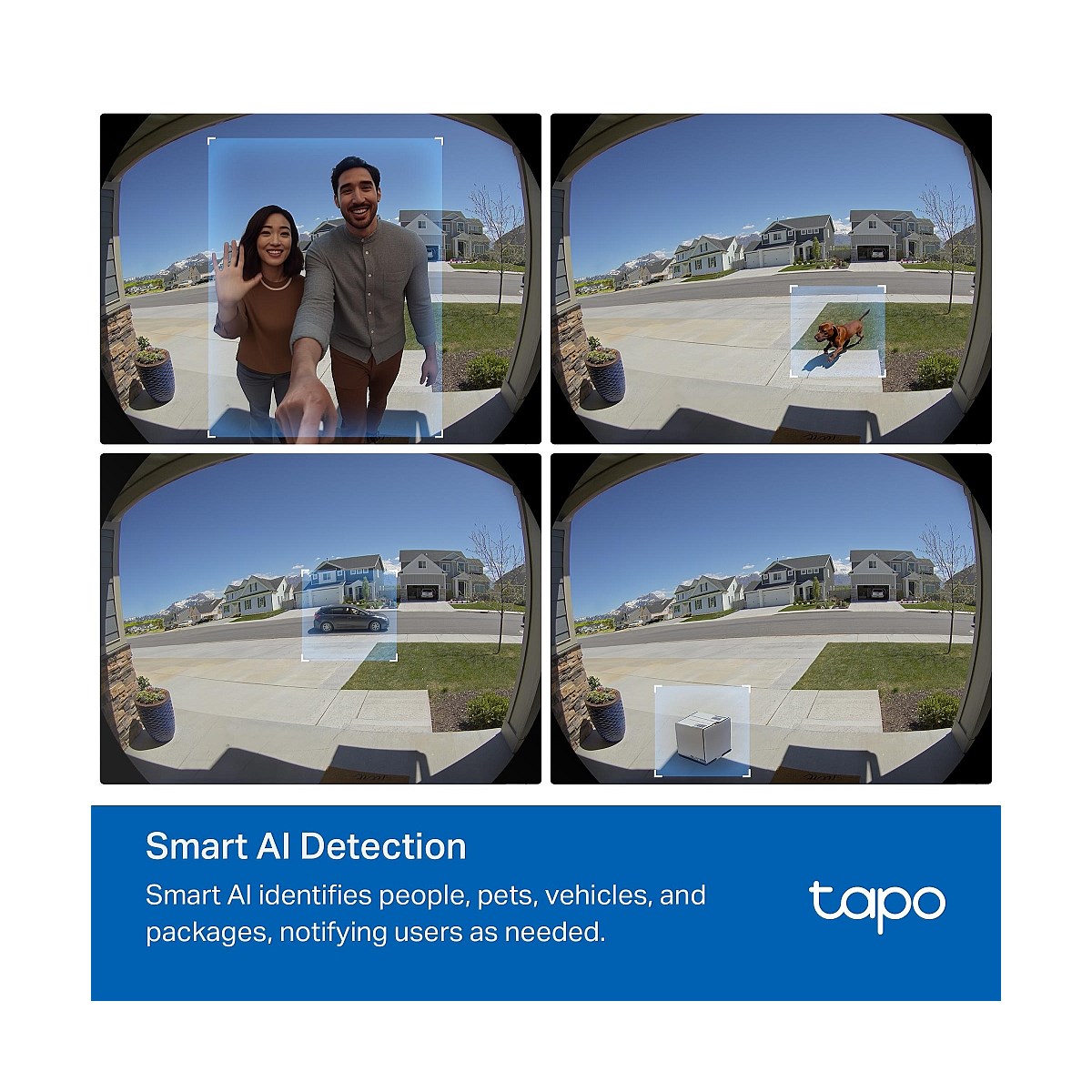

Smart AI Detection and Notification
Smart AI identifies people, pets, vehicles, and packages, notifying users as needed.

• Person Detection
• Pet Detection
• Vehicle Detection
• Package Detection

Camera

• Image Sensor: 1/2.7 Progressive Scan CMOS Sensor
• Lens:
  • Focal Length: 1.18mm
  • Aperture: F1.8
  • Field of View: 170.6 degree (Horizontal), 140.1 degree (Vertical)
• Night Vision: 850 nm IR LED (33 ft / 10 m) Full-Color Night Vision
• Lighting: Built-in Spotlights
• Interface and Button
• 1 x RESET /SYNC Button
• 1 x Doorbell Button

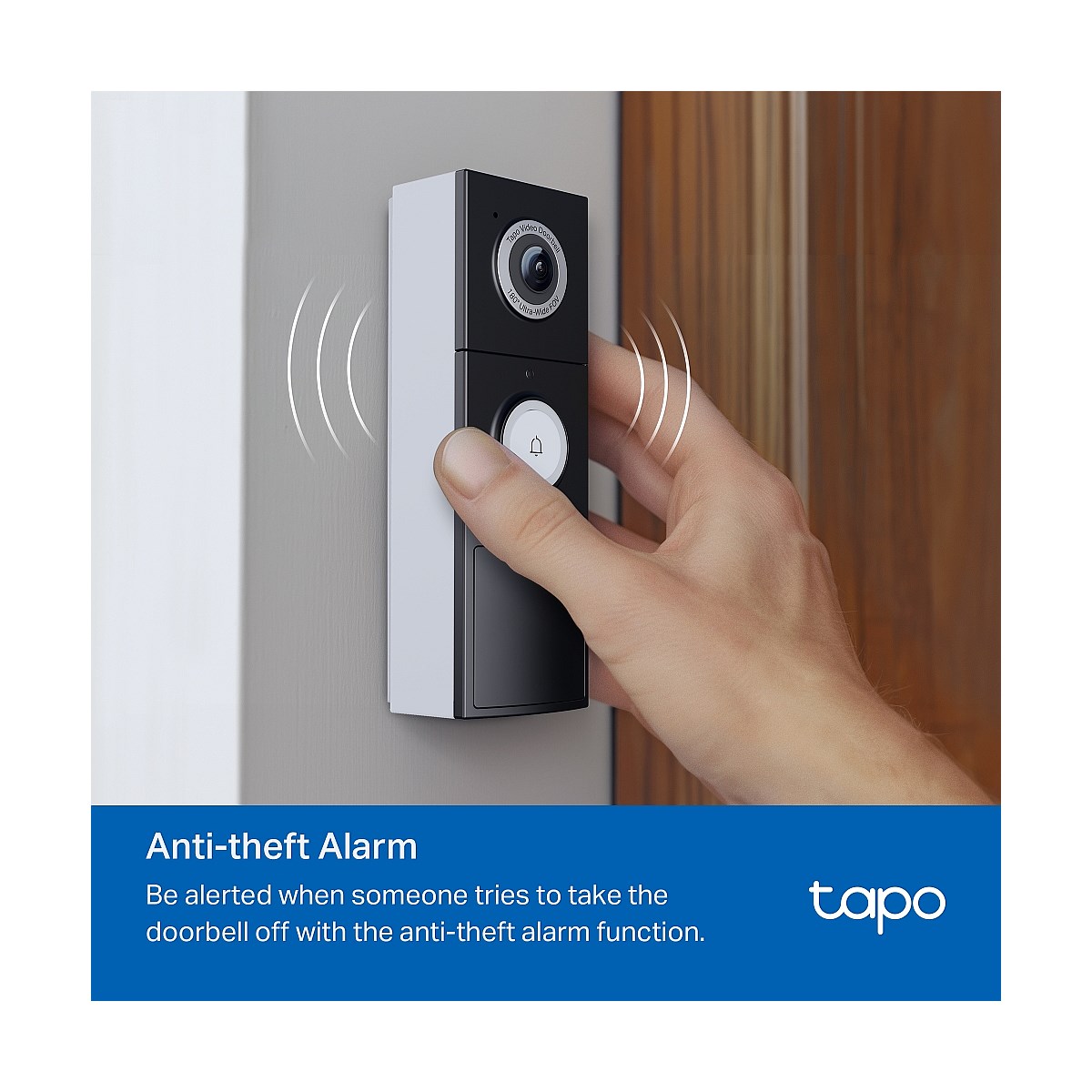

• 1 x Anti-Theft Button
• 1 x Power ON/OFF Button

Video and Audio

• Maximum Resolution: 2K 5MP (2560 - 1920px)
• Frame Rate: 15/20 fps
• Video Compression: H.264
• Live View: Yes
• Image Enhancement: 3DNRWDR
• Audio Input and Output: Built-in Microphone and Speaker
• Audio Communication: Two-Way Audio with Noise Cancellation
• Siren Volume: 98dB (Level measured at 4-inch/10-cm distance)

Storage

• Local Storage: MicroSD Card Slot (Up to 512 GB)
• Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)

Detections and notifications

• Sensor:
  • Single PIR Motion Sensor (FOV: 130 degere horizontal)
  • One Ambient Light Sensor
• AI Detection:
• Motion Detection
• Person Detection
• Pet Detection
• Vehicle Detection
• Package Detection
• Activity Zones: Yes *Only works with Motion Detection.
• Output Notification:
• System Notification
• System Notification with Snapshot (Tapo Care Services)

Network

• Network Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi

Security

• On-Device Machine Learning: 128-bit AES Encryption with SSL/TLSWPA/WPA2-PSK

Power

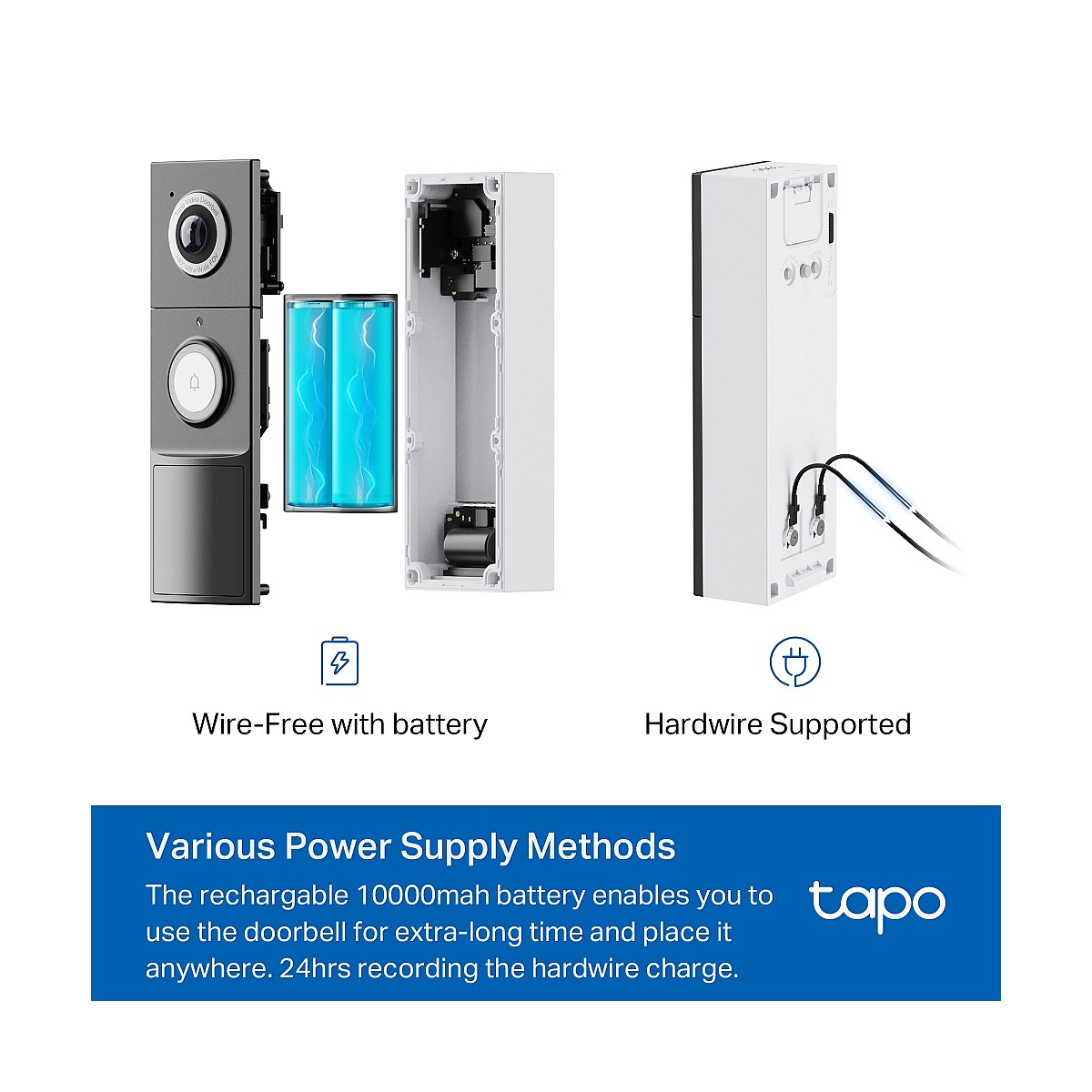

• Power Source: 10000 mAh Built-in Rechargeable Lithium-ion Battery / Hardwire charge / Hardwire supply
• Input Voltage: Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz
• Output Voltage: Doorbell Battery Pack Adapter Output: 5.0 V, 2.0 A

General

• Smart Integration: Google Assistant, Amazon Alexa
• Weather Resistance: IP66
• System Requirements: Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
• Mounting Options: Stick to a Wall / Mount to a Wall
• Operating Temperature: -20-45 degrees
• Storage Temperature: -20-45 degrees
• Operating Humidity: 10%-90% RH, Non-condensing
• Storage Humidity: 0-90% RH, Non-condensing
• Charging Temperature: 0-45 degrees

Dimensions

• Doorbell Dimensions: 2.13 x 1.97 x 1.52 in (150 x 50 x 38.4 mm)
• Chime Dimensions: 2.87x2.01x1.71 in (73x51x43.5 mm)

Package Contents

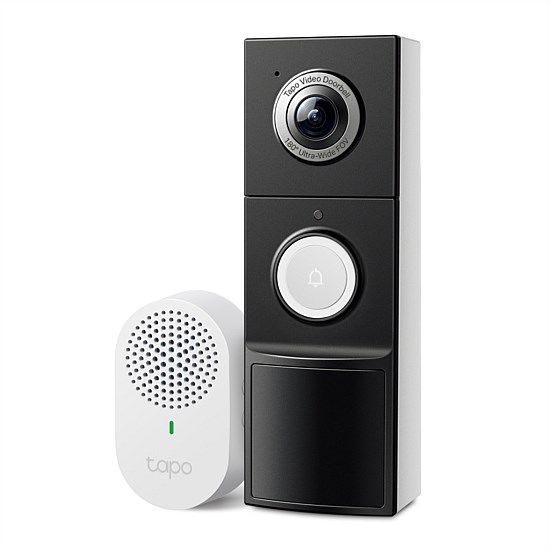

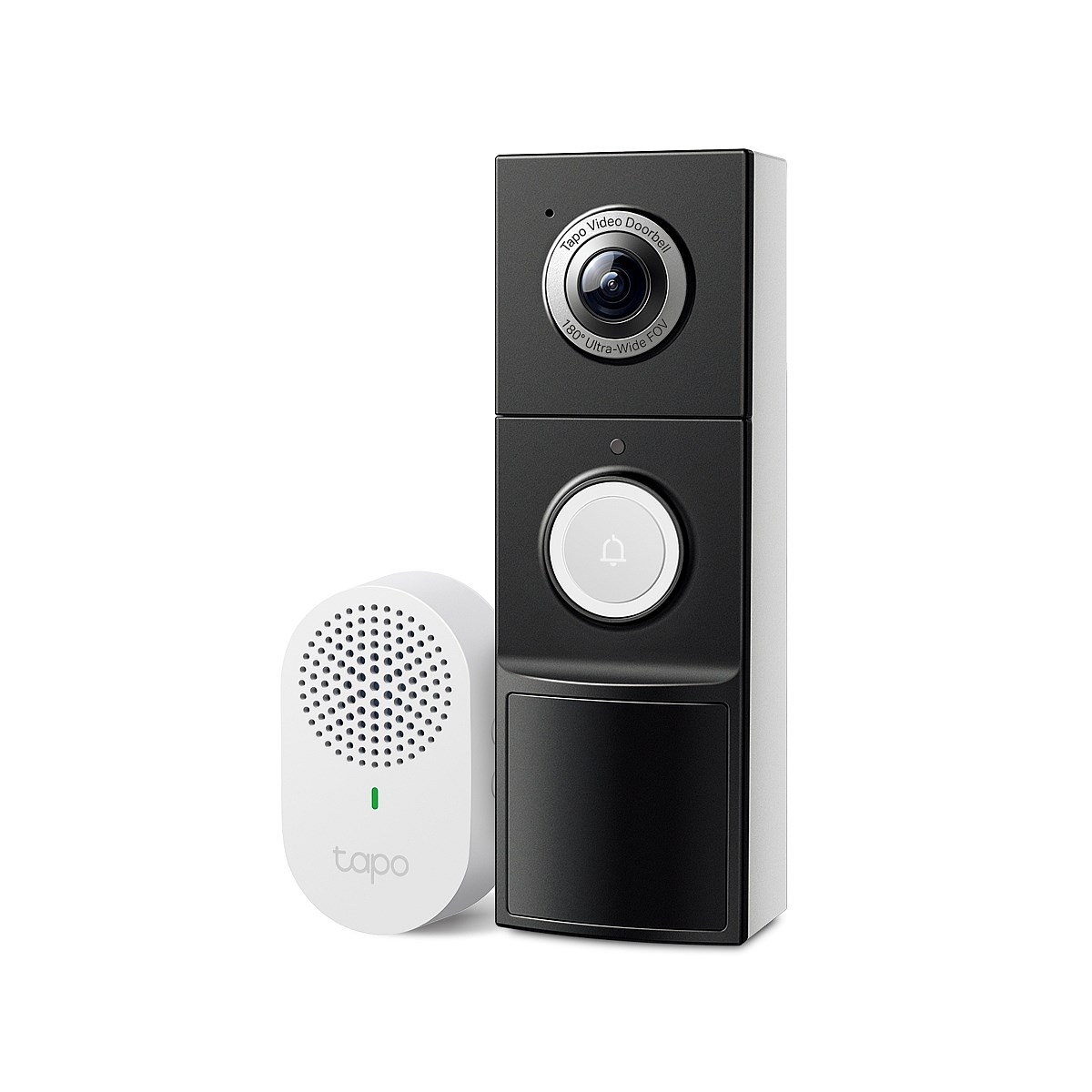

• Tapo Video Doorbell x 1
• Tapo Chime x 1
• Mounting Template x 1
• Mounting Bracket x 1
• Vertical Mounting Wedge x 1
• Horizontal Mounting Wedge x 1
• USB Adapter Cable x 1
• Jumper for Existing Chime x 1
• Extension Wires x 2
• Mounting Screws and Anchors x 3
• Hardwire Installation Screws x 2
• Doorbell Detaching Pin x 1
• Mounting Wedge Screws x 5
• 3M Adhesive x 1
• Foam Pad x 1
• Wire Nuts x 2
• Quick Start Guide

Certifications

CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA
