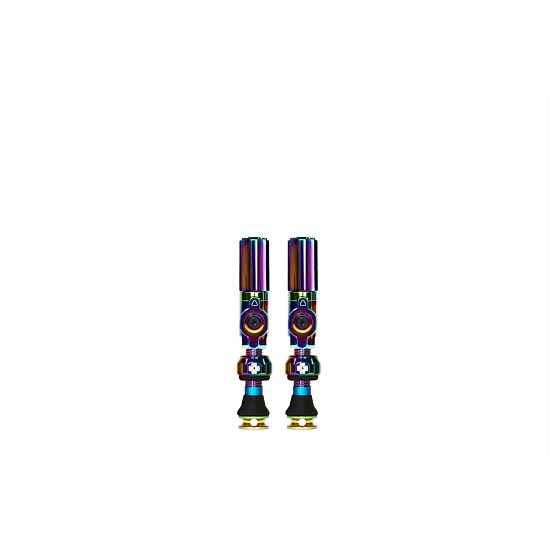

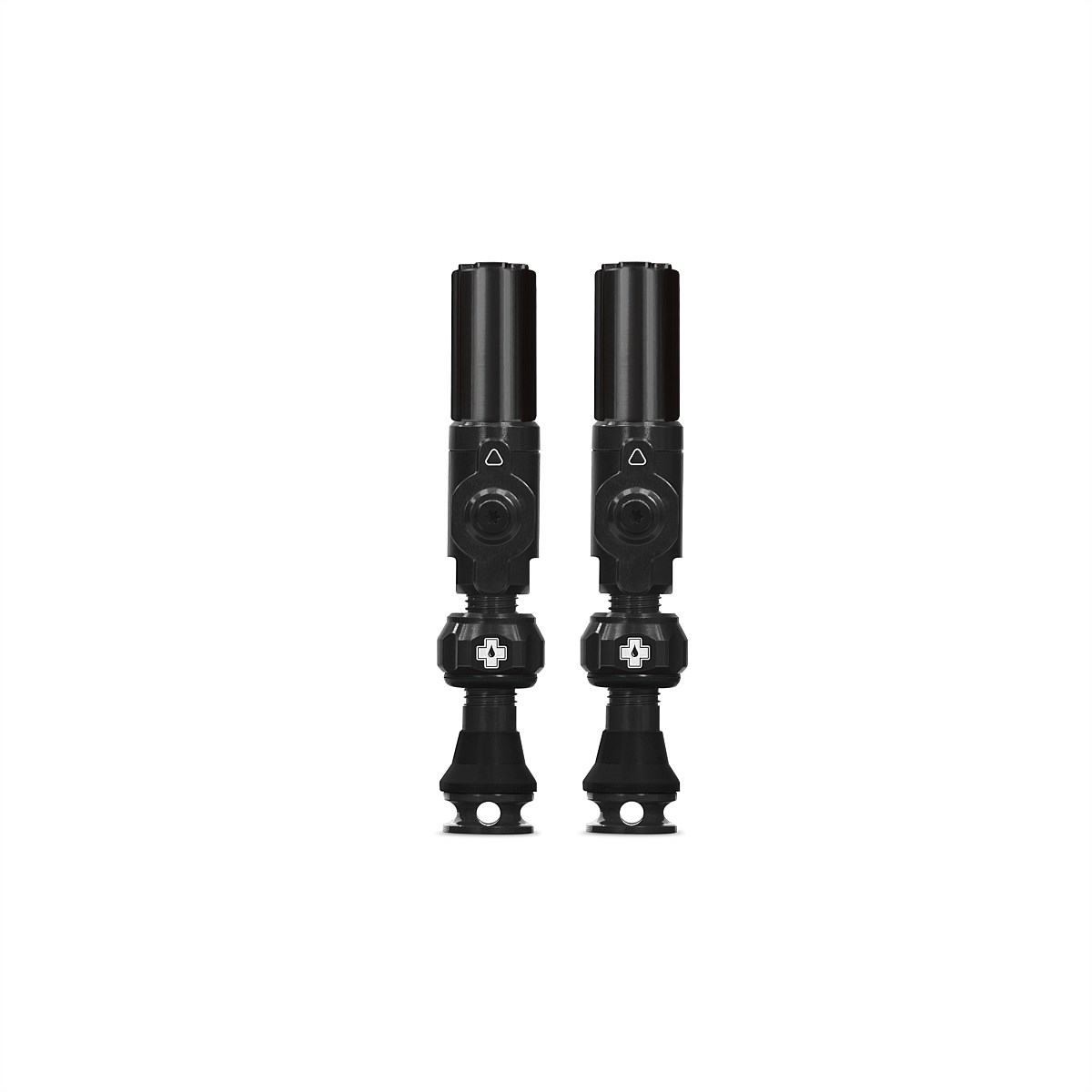

Tubeless Valves Big Bore Hybrid

Engineered with precision and designed to deliver maximum inflation simply and efficiently, this patent pending valve sets a new standard and is the benchmark in high air flow tubeless tyre systems with a revolutionary 'Straight through' internal design for maximum airflow.

Our Big Bore Hybrid offers up to 245% higher air flow than traditional Presta valves thanks to the straight through bore design.

 Precision CNC machined from 7075 aircraft grade aluminium
 Coreless, ball valve system opens and closes with integrated lever
 Stainless steel ball valve with seals and O rings
 Universal valve head on the hybrid valve is compatible with most screw on and push fit pumps
 Serviceable design with spanner flats on the head, lever and body
 4 way tyre insert air flow base is compatible with most tubeless inserts
 4mm machined hex key slot for easy installation / removal
 Supplied with various rubber bases to optimise fit and seal with multiple rim types

Valve Size and Suggested Rim Depth:
Small: 20mm
Medium: 20 - 25mm
Large: 25-30MM
XL: 50mm
